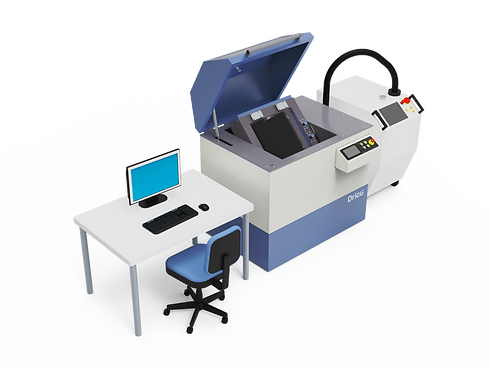

Compact Motion Simulator Series
full performance, designed for compact sensor packages
MEMS‑based motion sensors are widely used in many industries today. Through calibration and characterization, MEMS‑based sensors can almost achieve accuracy levels comparable to those of conventional, high‑cost motion sensors. This is why these sensors are already employed in numerous applications, such as automotive, consumer electronics, drones etc.
These sensors are often only a few millimeters in size, and even complete sensor packages typically measure only a few centimeters. These compact sensors place entirely different demands on a motion simulator. That is why Drico developed the "Compact Motion Simulator Series.
Industries
automotive, drones, industrial, medical, defense...
Size isn't everything
Conventional motion simulator models were developed for large motion sensors (such as fiber‑optic and ring‑laser gyroscopes) and are therefore correspondingly large and expensive.
Unlike conventional systems, the compact motion simulator series is purpose-built for compact sensors, delivering high-performance motion simulation in a desktop-sized platform.
General Specs
-
2 axis configuration
-
position accuracy and repeatability (down to 10 arcsec PP)
-
Rate stability below 10ppm over 360 degree
-
Low to max temperature in less than 30 minutes
-
Temperature range -55 up to 150°C
-
Available in different sizes
Applications
Calibration & Characterization of compact inertial sensors
Key Features
-
Very small footprint
-
Integrated Safety enclosure
-
Easy re-location
-
Low operation and maintenance costs
-
High position accuracy & repeatability
-
High rate accuracy & stability
-
Fully customizable payload interface
-
On-board data processing
Cost of Ownership
Compared to traditional, bulky motion simulators, the total cost of ownership of a compact motion simulator is significantly lower across multiple areas:
-
Lower initial system cost
-
Significantly reduced energy consumption
-
Much lower installation-site requirements (floor load capacity, external infrastructure, external safety enclosures etc.)
-
Low maintenance costs
